Rancilio Classe 11 USB Xcelsius Tall 2 Group Commercial Espresso Machine

The Rancilio Classe 11 USB Xcelsius Tall 2 Group is a flagship multi-boiler commercial espresso machine with Xcelsius temperature profiling, independent brewing groups and advanced digital control.

Built for speciality coffee shops, premium cafés, restaurants and demanding hospitality environments, the Classe 11 Xcelsius gives experienced baristas detailed control over extraction while retaining the capacity needed for busy commercial service.

Each group has its own 150ml micro-boiler and dedicated display, while an 11-litre steam boiler handles milk and hot-water demand. Xcelsius technology then adds another level of control by allowing the brewing temperature to change dynamically during extraction.

---

Xcelsius Temperature Profiling

Xcelsius Temperature Profiling allows the brewing temperature to increase or decrease dynamically during espresso extraction rather than remaining fixed from beginning to end.

Rancilio allows a temperature variation of up to 5°C during the extraction profile, giving experienced baristas another variable to work with when developing recipes for different coffees and roast styles.

This makes the Classe 11 particularly useful for speciality coffee businesses where detailed control over extraction genuinely matters.

---

Independent Multi-Boiler Brewing Groups

Each brewing group has its own 150ml micro-boiler with a dedicated 250W heating element.

This independent architecture allows different brewing temperatures to be used across the two groups while helping maintain stable water and group temperatures during service.

The coffee micro-boilers operate separately from the main steam boiler, so precise espresso temperature management is not dependent on the demands of milk steaming or hot-water use.

---

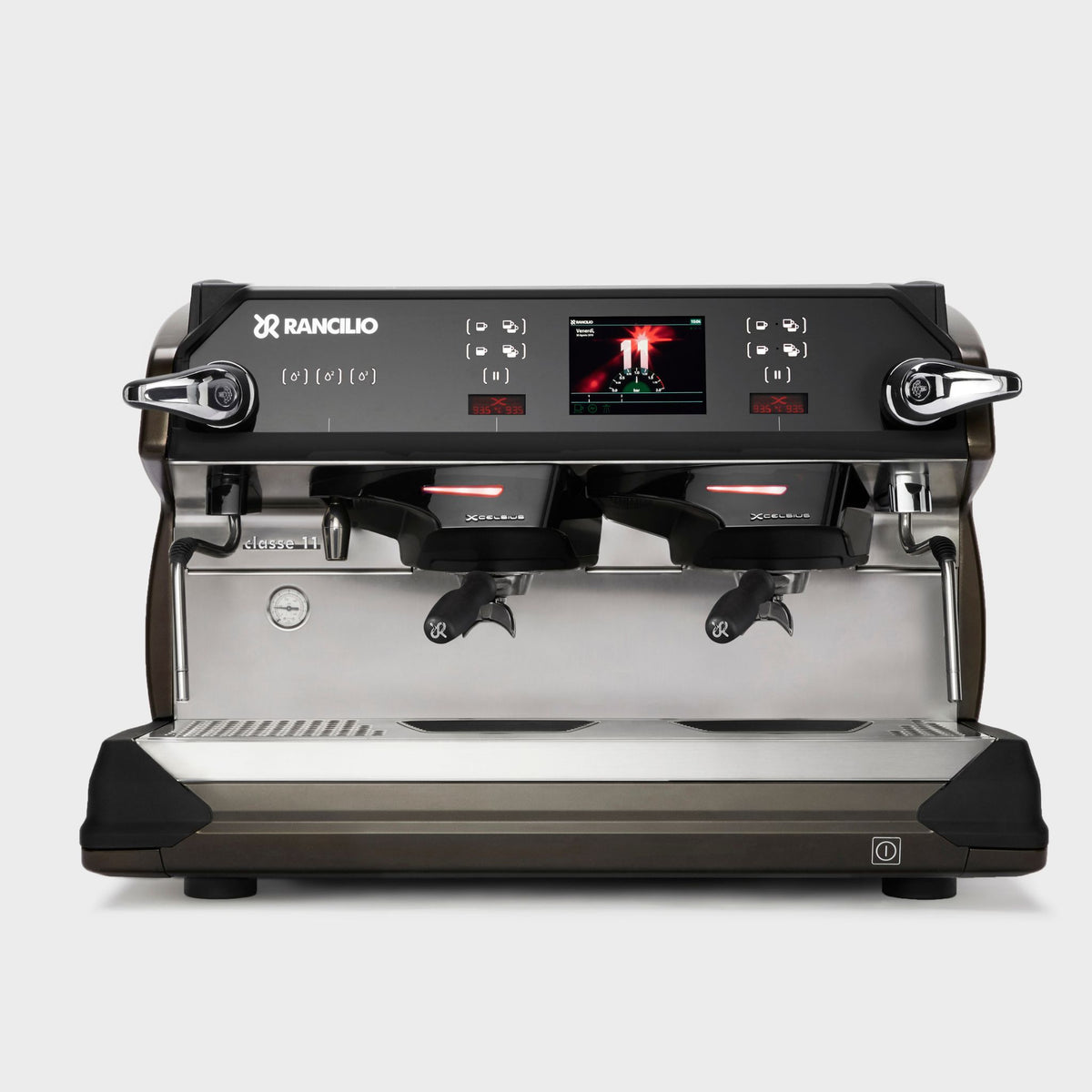

5.7-Inch Touchscreen Interface

A large 5.7-inch touchscreen provides access to machine settings, brewing parameters and operational controls.

The interface puts the Classe 11's advanced functionality in one central place while keeping normal day-to-day operation straightforward for the barista.

---

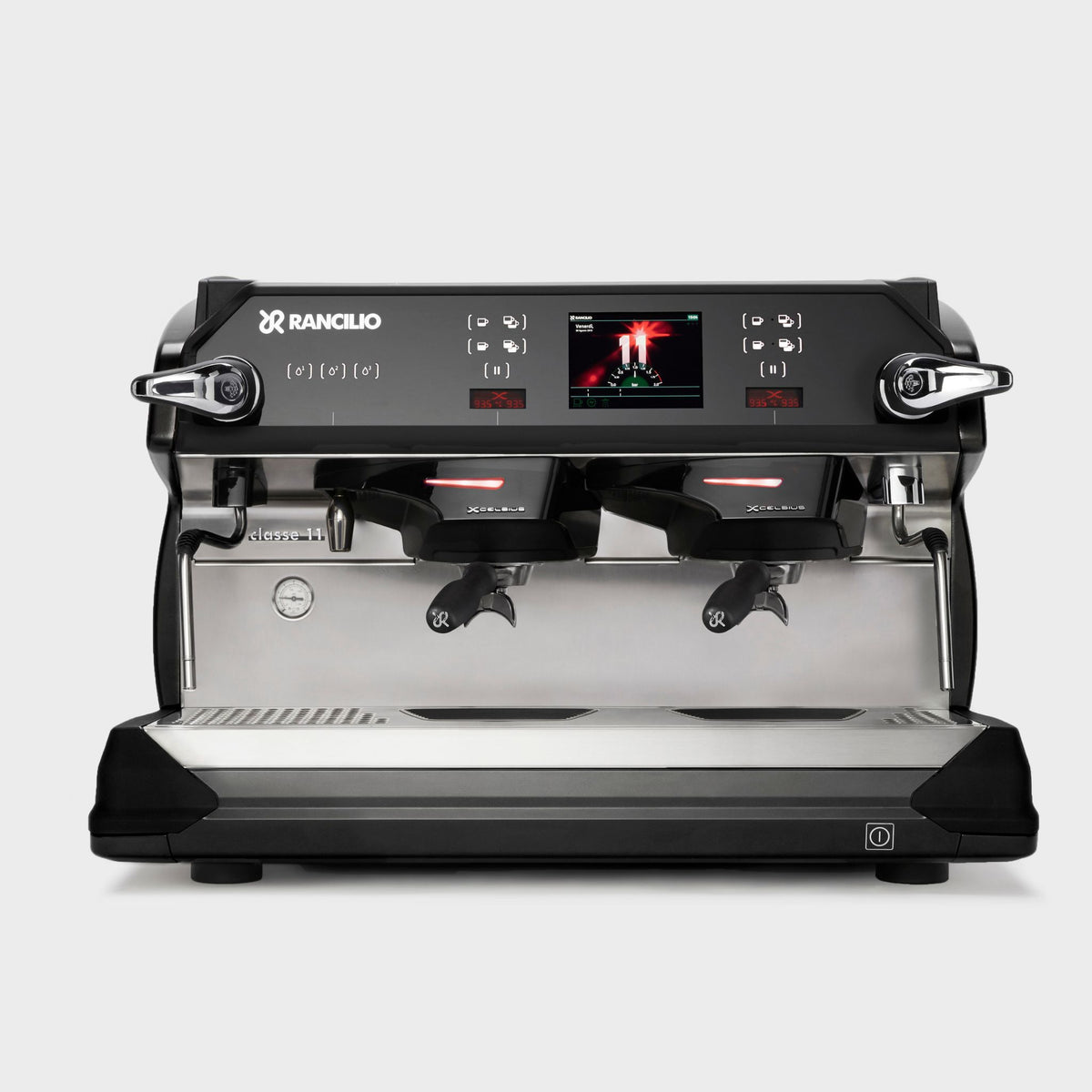

Dedicated Display for Each Brewing Group

Each group has its own digital display, keeping important extraction information directly in front of the barista during service.

This works alongside the main touchscreen to make it easier to monitor individual groups without moving away from the working area.

---

Advanced Steady Brew

Rancilio's Advanced Steady Brew system works alongside the independent boilers to help maintain accurate and repeatable brewing conditions.

For businesses where espresso needs to remain consistent throughout changing levels of demand, this gives the Classe 11 the thermal stability expected from a premium commercial machine.

---

11-Litre Commercial Steam Boiler

The 2-group Classe 11 combines its independent coffee micro-boilers with an 11-litre steam boiler.

This provides the steam and hot-water capacity required for demanding milk-based drink service while leaving the coffee groups to manage brewing temperature independently.

---

Tall Groups for Takeaway Cups

The Tall configuration accommodates cups up to 145mm high, making it suitable for takeaway cups and larger milk-based drinks as well as traditional espresso service.

Rise plates allow smaller espresso cups to be positioned closer to the group heads when required.

---

Cool-Touch Steam Wands & C-Lever Controls

The Classe 11 uses thermally insulated cool-touch steam wands with Rancilio's C-Lever steam controls.

The short-action C-Lever provides quick control over steam delivery while the insulated wand construction improves handling and helps reduce milk residue baking onto the outside of the wand.

---

X-Tea Programmable Hot Water

Rancilio's X-Tea system offers eight programmable hot-water temperature levels.

This gives the barista greater control over hot-water service for Americanos, teas and other drinks alongside espresso production.

---

Designed Around Professional Baristas

• 2 independent Tall brewing groups
• Xcelsius temperature profiling
• Advanced Steady Brew
• Independent multi-boiler system
• 11-litre steam boiler
• 2 × 150ml coffee micro-boilers
• 5.7-inch touchscreen
• Dedicated digital display for each group
• Automatic volumetric dosing
• X-Tea hot-water system with 8 levels
• C-Lever steam controls
• Cool-touch steam wands
• Ergonomic brass portafilters
• LED work-area lighting
• RGB group lighting
• Temperature-controlled cup warmer
• 145mm Tall cup clearance

---

Energy Management & Automatic Scheduling

The Classe 11 includes Eco Mode and programmable automatic on/off scheduling to help manage unnecessary energy consumption outside busy operating periods.

Advanced Boiler Management also helps manage power and boiler performance during demanding service.

---

Easy Cleaning & Maintenance

Rancilio Easy Clean automates washing and rinsing of the brewing groups once the cleaning programme has been started.

The machine also includes cleaning-management and diagnostic functionality designed to make routine maintenance easier to manage in a professional environment.

---

For Speciality Coffee & High-Performance Hospitality

The Classe 11 USB Xcelsius Tall sits at the top end of Rancilio's traditional espresso machine range for good reason.

Its combination of dynamic temperature profiling, independent groups, multi-boiler brewing and detailed digital control makes it particularly well suited to speciality coffee shops, premium cafés and hospitality businesses working with multiple coffees or carefully developed espresso recipes.

---

Rancilio Classe 11 USB Xcelsius Tall 2 Group Technical Specifications

• Machine type: Premium multi-boiler commercial barista espresso machine
• Version: USB Xcelsius Tall
• Groups: 2 independent Tall groups
• Brewing technology: Xcelsius Temperature Profiling / Advanced Steady Brew
• Main steam boiler: 11L
• Coffee micro-boilers: 2 × 150ml / 250W
• Power supply: 220–240V 3N / 380–415V 3N, 50–60Hz
• Power: 4950–6650W
• Dimensions: 800 W × 540 H × 600 D mm
• Weight: 85kg
• Water supply: Permanent mains water connection
• Maximum cup height: 145mm
• Interface: 5.7-inch touchscreen
• Group displays: Dedicated digital display for each group
• Dosing: Automatic volumetric
• Hot water: X-Tea, 8 temperature levels
• Steam: C-Lever with cool-touch steam wands
• Colours: Frozen Bronze, Glossy Black or Pearl White

---

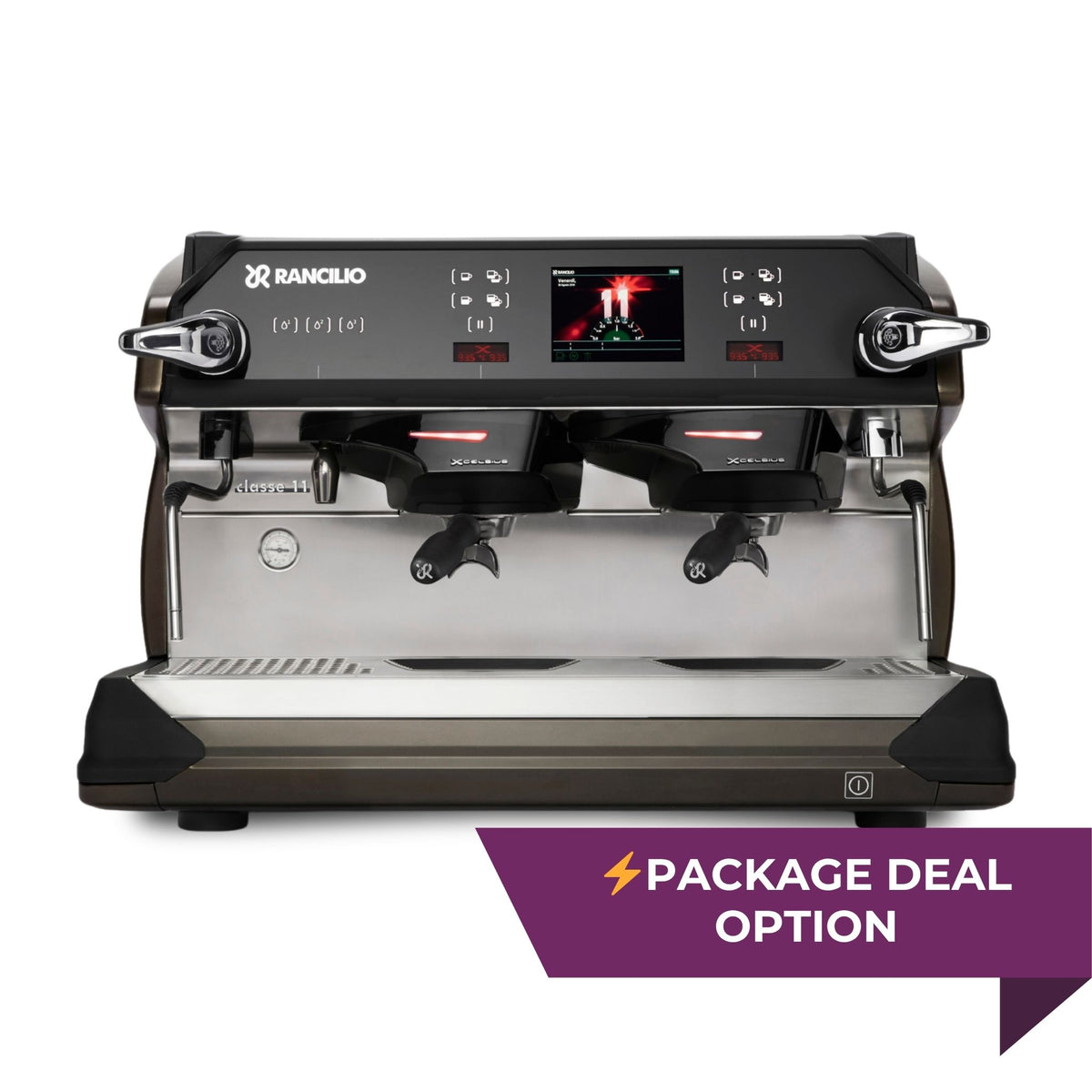

Want the Complete Classe 11 Xcelsius Package?

If you also need a professional grinder and supporting bar equipment, the Classe 11 USB Xcelsius Tall is available as a complete commercial barista package with a Remidag RMD64 PRO grinder, knock-out drawer, delivery, installation and barista training.

View the Rancilio Classe 11 USB Xcelsius Tall Package Deal.

What is Xcelsius Temperature Profiling?

Xcelsius allows the brewing temperature to change dynamically during extraction, with a temperature variation of up to 5°C, giving experienced baristas greater control over how different coffee characteristics are developed.

Is the Classe 11 Xcelsius a multi-boiler machine?

Yes. The 2-group model combines an 11-litre steam boiler with two independent 150ml coffee micro-boilers.

Can each group use a different brewing temperature?

Yes. Each brewing group operates independently and can be configured for different coffee recipes and brewing temperatures.

Is the Classe 11 suitable for speciality coffee?

Yes. Xcelsius temperature profiling, independent groups and multi-boiler brewing make it particularly well suited to speciality coffee businesses wanting detailed control over espresso extraction.

Will it accommodate takeaway cups?

Yes. The Tall configuration accommodates cups up to 145mm high.

Can I lease the Classe 11 USB Xcelsius Tall?

Yes. Commercial leasing is available. Contact StafCo for a tailored lease quotation.
